Name: McMurdo EPIRB G8 AIS Smartfind manual Cat II - solutiononemarine.com
SKU: 23-001-001A
Price: 699.95 USD
Availability: InStock

McMurdo EPIRB G8 AIS Smartfind manual Cat II

Part No : 23-001-001A

Price

$699.95

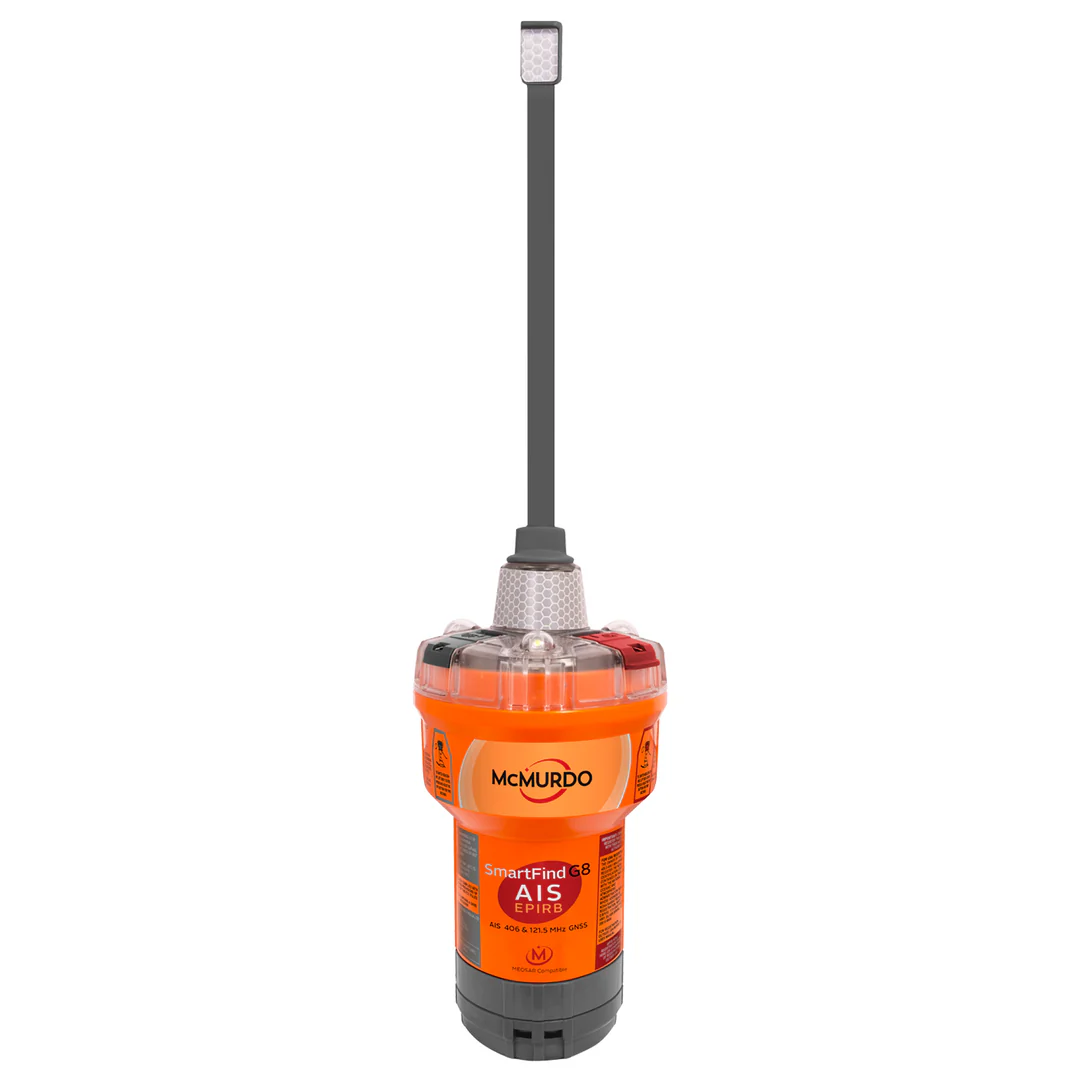

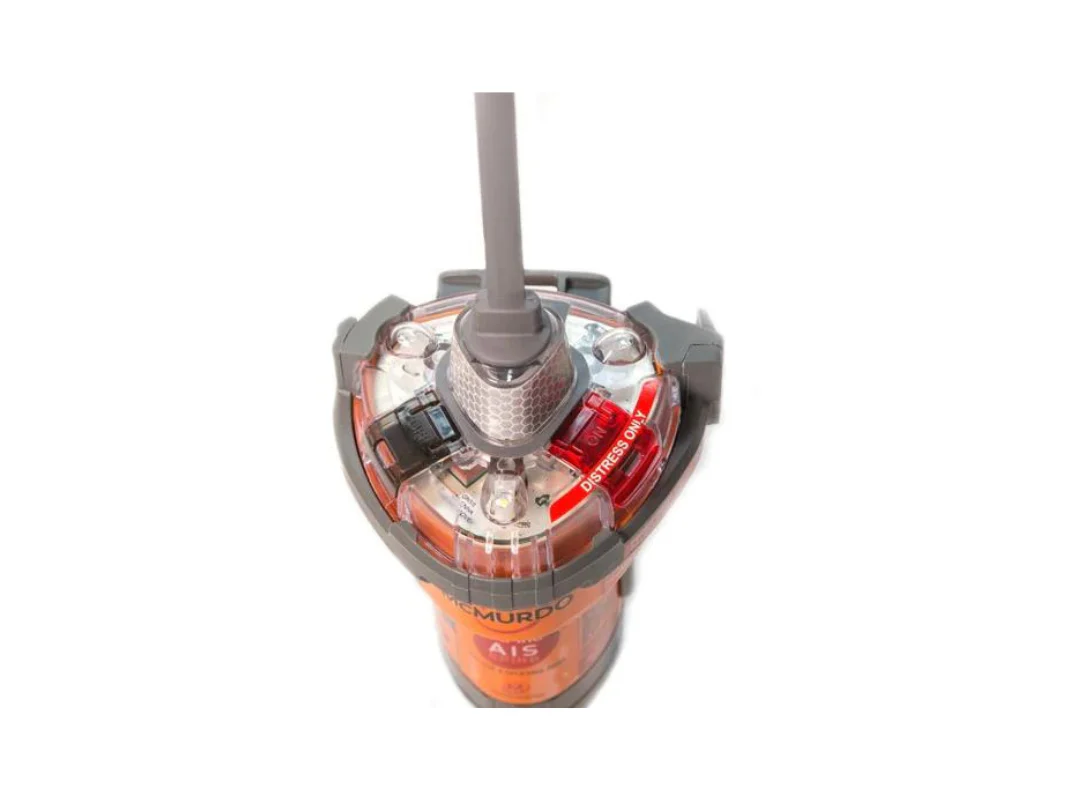

McMurdo SmartFind G8 AIS EPIRB

The G8 AIS EPIRB is the world’s first EPIRB to combine the global 406MHz professional search and rescue alert, with the localised locating and tracking power of AIS. With the added benefits of dual GNSS including Galileo and GPS, it is one of the world’s most powerful EPIRBs.

Rugged, multi GNSS 406MHz EPIRB with both GPS and Galileo receivers, unique inbuilt AIS, optimised for new MEOSAR system

Operating Frequencies:

406MHz
121.5MHz
Multi GNSS
AIS

Features

Built in AIS
Multi GNSS including Galileo
Accidental activation protection
Rugged construction optimised for commercial environments
Hands free carry strap
360-degree strobe
Comes with safety bracket
10-year battery life
Sealed Electronic Unit
Sealed Battery Unit
Manual/Auto release options

406 MHZ TRANSMITTER

Frequency	406.040 MHz + 1kHZ
Power output	5 W nominal
Modulation	Phase (16KOG1D)

121.5 MHZ TRANSMITTER

Frequency	121.5 MHz + 3 kHz
Power output	100 mW nominal
Modulation	Swept tone AM (3K20A3X)

AIS TRANSMITTER (SEE NOTE 1)

Frequencies	161.975 MHz (AIS1); 162.025 MHz (AIS2)
Power output	1 W nominal
Modulation	Phase (16KOGXW)

GNSS RECEIVER (SEE NOTE 2)

Constellations	GPS, Galileo
Frequencies	1575.42 MHz (GPS, Galileo);
Sensitivity	-167 dBm minimum
Satellites tracked	72 channel

STROBE LIGHT

Type	3 high intensivity LEDs
Light output	0.2 cd minimum
Flash rate	23 flashes per minute

BATTERY

Type	Lithium iron disulphide
Operating life	48 hours minimum
Shelf life (in-service life)	10 years from date of manufacture (see Note 3)

ENVIRONMENT

Operating temperature	-20 °C to +55 °C (-4° F to +131° F)
Storage temperature	-30 °C to +70 °C (-22° F to +158° F)
Automatic release depth	4 m maximum

DIMENSIONS (EPIRB)

Weight	710 g
Height/Width/Depth	423x104x103 mm (incl. antenna)
Length of antenna	206 mm

DIMENSIONS (MANUAL BRACKET)

Weight	110 g
Height/Width/Depth	270x125x121 mm

DIMENSIONS (FLOAT FREE ENCLOSURE)

Weight	1075 g
Height/Width/Depth	416x126x132 mm

STANDARDS APPLIED

COSPAS-SARSAT	C/S 1.001 C/S T.007
Europe	MED (wheelmark)
USA	USCG & FCC; FCC ID; TBA; 4 7 CFR Parts 80, 2;
International standards	Dependant on variant IEC 61097-2; IEC 60945 incl. Corrigendum1; Industry Canada RSS-287; AS/NZS 4280.1; IMO MSC/Circ. 862
IMO regulations	A.662(16); A.694(17); A.810(19); A.814(19)

PART NUMBERS

SmartFind E8 Manual EPIRB	23-001-004A
SmartFind E8 Auto EPIRB	23-001-504A
SmartFind G8 Manual EPIRB	23-001-002A
SmartFind G8 Auto EPIRB	23-001-502A
SmartFind G8 AIS Manual EPIRB	23-001-001A
SmartFind G8 AIS Auto EPIRB	23-001-501A

NOTE 1: AIS is available on the G8-AIS model only
NOTE 2: GNSS is available on the G8 and G8-AIS models only
NOTE 3: As a responsible manufacturer, McMurdo recommends a 5-year health check at the nearest McMurdo approved service agent. Shore-based maintenance mandated vessels, battery
health check or replacements should be carried out in accordance with flag Administration requirements and not exceeding 5 years.
